Why Case Capacity Matters in Reloading: Brass Volume, Pressure, and Safety

Reloading ammunition is a craft of details. Among the many variables a reloader must consider—powder charge, bullet weight, seating depth, etc.—case capacity is one that often gets overlooked by beginners but is well understood by experienced handloaders. In this article, we’ll explain what case capacity is and why knowing the exact capacity of your brass is so important. We’ll explore how small differences in case volume between brands (like Lapua vs. Winchester) or even different production lots can impact chamber pressure, velocity, and overall safety. We’ll also discuss how to measure case capacity and provide tips for adjusting your loads and best practices to keep your reloading safe and consistent.

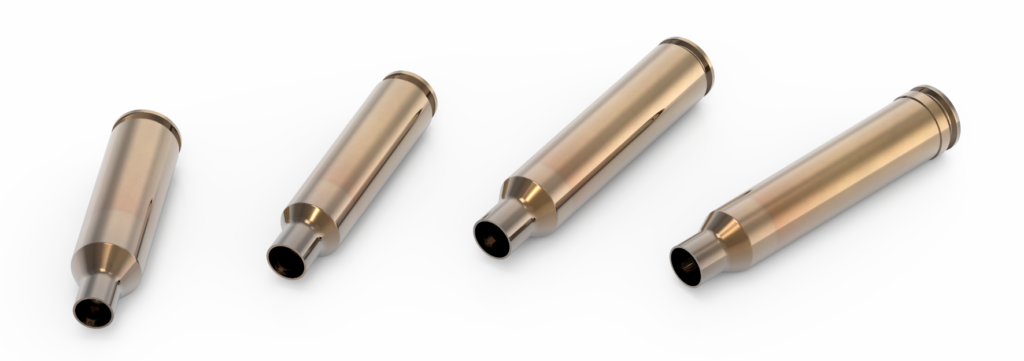

New brass

As several members of our community have approached us, we have set up a page to collect and display the case capacity of different brands and calibers. If you have measured your brass, then please share your measurements here:

Share Case Capacity Measures

Variations in the underlying case capacity can also explain why our load data sometimes differs from that of other sources.

What Is Case Capacity?

Case capacity refers to the internal volume of a cartridge case – essentially, how much space is inside the brass for powder (and combustion gases) once a bullet is seated. In reloading, case capacity is often measured in terms of how many grains of water the case can hold (with the spent primer in place) up to the brim. For example, a .308 Winchester case might hold on the order of 56–58 grains of water, whereas a much larger case like a .338 Lapua Magnum can hold over 114 grains of water. The exact capacity will vary by brand and lot of brass.

It’s important to understand that case capacity is essentially the available combustion chamber inside the cartridge. When the cartridge is fired, the burning powder generates hot gases that rapidly expand. The volume those gases have to expand into (the case’s internal volume plus the barrel space behind the bullet) will influence the pressure that builds up. This is why even identical caliber cases can behave differently if their internal volumes differ.

Why Small Differences in Capacity Can Cause Big Differences in Pressure

In internal ballistics, a smaller volume with the same amount of powder will result in higher pressure. This is a basic physical principle: if you confine the expanding gases in a smaller space, pressure goes up (all else being equal). Even a small difference in case capacity can lead to noticeable changes in chamber pressure and muzzle velocity.

For instance, one shooter working with .270 Winchester brass discovered that cases from one brand (Frontier) produced 100 fps higher muzzle velocity on average than cases from another brand (Hornady) when loaded with the exact same powder charge and bullet. The only major difference was the brass – the Frontier cases were heavier (thicker) and thus had slightly less internal capacity, leading to higher pressure and speed​. In mixed batches of brass, this shooter saw inconsistent velocities and erratic performance. This example highlights how even minor capacity variations can translate into significant differences downrange.

Why does this happen? Think of the cartridge case as part of the combustion chamber. If one case has even a couple of percent less volume than another, the powder in that smaller space burns at a higher pressure. Higher pressure not only boosts velocity but can potentially push the load into unsafe territory if it is already near maximum. As one reloading forum member succinctly put it: “A full case = higher pressure and higher velocity. More brass in the case means less room for powder, thus a higher load density... the same load may pressure out in the heavier brass.”​ In other words, a load that is safe in a roomier case might produce excessive pressure in a case with less capacity.

It’s worth noting that the effect of a capacity change is not always perfectly linear. Reducing case volume by, say, 3% doesn’t necessarily raise pressure by exactly 3% – it could be more, depending on the powder and other factors​. The key takeaway is that any reduction in volume will increase pressure to some degree. This is why even a difference of <1 grain of water capacity between cases can matter. In one test of .243 Winchester brass from five manufacturers, the max difference in water capacity was under 1 grain, yet the author still cautioned against blindly using the same max load in the brass with the smallest capacity without working up carefully​. Especially near the pressure limits, a small change can be the difference between a safe load and a pressure sign (like a flattened primer or stiff bolt lift).

Case Capacity Variations Between Brands and Lots

Not all brass is created equal. Different manufacturers use different brass formulations and case wall thicknesses, which directly affect case weight and internal volume. Even cases from the same manufacturer can vary between production lots or batches. Here are some known patterns and examples:

• Lapua vs. Winchester (Example in .308 Win): Lapua brass is famed for its quality and consistency, but it’s also generally heavier and thicker than, say, Winchester brass. Thicker walls mean less internal room. Many experienced reloaders have observed that Winchester .308 cases tend to have more capacity (thinner walls) than most other brands. Conversely, Lapua brass (and similarly, military surplus 7.62×51 NATO cases) often have less capacity due to heavier construction. The practical effect is that a maximum load developed in a roomy Winchester case could generate higher pressure if loaded into a smaller Lapua case without adjustment. In fact, standard practice when using military-spec or other “thick” cases in .308 is to reduce the powder charge by about 1 grain compared to data developed in commercial brass​. This rule of thumb exists precisely to compensate for the reduced capacity and thereby keep pressures safe.

• Military vs. Commercial Brass: This is a classic case (no pun intended) of capacity variation. Military brass (such as Lake City for 7.62 NATO or 5.56 NATO) is usually a bit thicker and heavier than commercial brass in the same caliber (.308 Win or .223 Rem). Therefore, it holds less powder. Reloading manuals often explicitly warn about this. For example, Nosler’s reloading guide notes that “Military brass has less case capacity because of its heavier construction... yielding higher pressures”, and it urges caution, recommending to start at or below minimum loads when using such brass​. Similarly, Sierra’s manual advises that if you use military cases, reduce charges by 1–2 grains because the thicker cases “decrease capacity, making a reduction in charge weight a necessity.” These cautions are borne out by tests: one experiment found that a set of 7.62 NATO cases averaged about 8% heavier and held roughly 1.5 grains less water than commercial .308 cases – a difference that can indeed raise pressure.

• Lot-to-Lot Variations: Even within the same brand and caliber, different lots can have slight differences. Brass produced in different years or batches might come out with minor dimensional tweaks or alloy differences. For instance, in the .243 Win test mentioned earlier, two lots of Winchester brass had a 14.7 grain difference in average case weight, yet their capacities turned out identical in that case. On the other hand, other brands might show a small capacity variance. A reloader on a forum noted that Winchester brass can vary lot to lot, and one lot may be “tighter” (less volume) than another. The lesson is that while reputable manufacturers maintain good consistency, it’s wise to treat any change of brass (brand or lot) as a variable and verify if it affects your load’s performance.

How to Measure Case Capacity

So, how can a reloader actually find out their case’s capacity? The most common method is surprisingly simple and uses water:

Water Filling Method: Start with a fired case (to represent the case at its expanded size in your chamber) and make sure the spent primer is in place to seal the primer pocket (or plug the flash hole with a bit of clay or use a specialized primer pocket plug). Weigh the empty case (in grains). Then fill the case with water all the way to the case mouth (level with the rim) and weigh it again. The difference in weight (water-filled minus empty) is the water capacity of that case, in grains of water. Because 1 grain is a very small unit of mass (approximately 0.065 grams), reloaders use grain weight of water as a convenient proxy for volume. For example, if the filled case weighs 430.0 grains and the empty case weighed 375.0 grains, the case’s capacity is 55.0 grains of water.

Some tips for accurate measurement: use distilled water (to avoid residue), and be consistent about filling technique (a dropper can help get right to the brim without air bubbles). You can measure a few cases and take an average for a given batch of brass. In many cases, case weight correlates inversely with capacity for the same caliber and brand – heavier cases usually have slightly less internal space. So, some reloaders simply sort their brass by weight as a rough way to estimate capacity differences. However, weighing alone can be misleading across different brands, because the brass alloy or case head thickness distribution might differ. The water method gives a direct volume measurement.

There are also modern tools and tricks to speed up capacity measurement. For instance, products like the Bison “Case Volume Gauge” use a special fine powder or a plunger system to measure internal volume without the mess of water. Others use primer pocket plugs to make water filling easier​. Very advanced handloaders who use internal ballistics software (like QuickLOAD) will often input their cases’ measured water capacity for more accurate predictions. Whether you use these methods or not, the bottom line is: know your brass. At least be aware if the brass you are using is on the “small capacity” end or the “large capacity” end for that cartridge.

Adjusting Your Load Based on Case Capacity

Once you know your case capacity (or at least know that one brand is different from another), how should you adjust your reloading process? Here are some guidelines to follow for safety and consistency:

• Always start low when changing brass: If you develop a load in one type of brass and then switch to another brand or lot, drop the powder charge down and work back up while watching for pressure signs. As an example, if you had a pet load of 44.0 grains of powder in Winchester .308 cases and you want to load the same bullets in Lapua cases, you might start at 42.0 or 43.0 grains and see how it performs in the Lapua brass before attempting 44.0. This echoes the manual guidance of reducing charges by perhaps ~2 grains when switching from a high-capacity case to a lower-capacity one​.

• Never assume data is interchangeable: Published load data in manuals usually specify the brand of case used for testing. A max load listed with, say, Winchester cases might be slightly too hot if you use a case with less capacity (like military or Lapua). That’s one reason manuals have a “starting load” and a max—the start is often 10% below max to provide a safety margin. Use that starting point anytime you change components. No two rifles are the same, and the same goes for cases. It’s better to work up again than to risk an over-pressure event.

• Observe pressure signs: As you work up, watch for classic high-pressure indicators (e.g. flattened or cratered primers, sticky bolt lift, case head shiny spots or expansion). If you see these signs earlier than expected, it could be your new brass has less capacity and is spiking pressure sooner. One experienced handloader noted that “tighter cases will hit max pressure at lower powder charges”​, which is exactly what you’d expect with reduced volume. Back off if you hit pressure signs, even if the charge is under published max—your brass might simply be the limiting factor.

• Consider adjusting seating depth: While the focus here is on case volume as determined by brass, remember that bullet seating depth also affects the remaining effective case volume. If you are seating bullets longer or shorter than the data, that alters how much space the powder has. Deeper seating (bullet further into the case) reduces capacity and raises pressure, similar to using a smaller case. Conversely, if you seat a bullet shallower (making a longer cartridge overall, as long as it’s still safe to chamber), you increase the volume and slightly reduce pressure. Keep this in mind alongside case capacity; both factors together determine total available volume.

• Uniform your brass: For precision shooting, some advanced reloaders will actually sort brass by capacity to ensure every round in a batch behaves consistently. They might measure all cases and group them by very close capacities (or weights). This is a lot of effort and usually not necessary for casual shooting or hunting ammo, but it demonstrates how serious the impact of capacity is for those chasing ultimate consistency. At the very least, don’t mix brands of brass for important loads. It’s fine to use mixed brass for plinking, but expect more velocity variation. For accurate loads, stick to one headstamp (and ideally the same lot). This eliminates one big variable.

Practical Example: Loading .308 Winchester in Different Brass

Let’s bring it all together with a practical scenario. Suppose you’re loading .308 Winchester cartridges and you have two batches of brass: 50 pieces of Lapua and 50 pieces of Winchester brand. You want to understand how to safely use both.

1. Measure or Research Capacity: You fill three fired Lapua cases with water and get an average of (for example) 56.0 grains of water. You do the same for three fired Winchester cases and get an average of 57.5 grains. This tells you the Winchester brass has about 1.5 grains more capacity on average. (If you don’t want to measure yourself, you might find information from other reloaders that Winchester cases are a bit roomier, whereas Lapua is a bit tighter, consistent with many reports​.)

2. Adjust Your Loads: Knowing this, if you have a favorite load that’s near maximum in the Winchester brass, you should assume the Lapua brass will show higher pressure with that same charge. You might reduce the charge by roughly 2 grains (which is a common recommendation when going from a larger capacity case to a smaller one​) and then work up carefully in the Lapua brass. You might find, for example, that 44.0 grains of a certain powder was fine in Winchester cases, but in Lapua you start at 42.0 and find pressure signs at 43.5 grains. That confirms the Lapua’s smaller capacity reached the pressure limit faster. You’d then safely stick to maybe 43.0 as your Lapua max, even though you can load 44.0 in the Win brass.

3. Document and Separate: Keep records of your load data for each brass type. It’s good practice to label your ammo boxes or even the cases (by headstamp) so you don’t accidentally mix them at the range. If you develop separate load recipes for Lapua and Winchester brass, don’t swap them interchangeably. Treat them almost like they are different cartridges when it comes to max powder charge.

4. Check Performance: You might chronograph both loads. Perhaps the Lapua cases with 43.0 gr give you 2,750 fps, and the Winchester cases with 44.0 gr also give ~2,750 fps. This would make sense if the Lapua’s higher pressure from less capacity compensated for the lighter powder charge. In the end, you achieve the same velocity safely, each brass with its tailored load. This kind of matching is what careful handloaders do to get uniform results. In contrast, if you had ignorantly loaded 44.0 grains in the Lapua case, you might have seen 2,800+ fps and blown primers – a dangerous situation avoided by understanding case capacity!




Tips and Best Practices for Reloaders

To wrap up, here are some best practices that both new and seasoned reloaders should keep in mind regarding case capacity:

• Always measure case capacity and consider it when reloading: Unfortunately, many reloading manuals do not share the underlying case capacity for their load data. xxlreloading.com does so and allows with the Personalized Load Calculator to adjust the load data to everyone's own measurements.

• Keep brass batches separated: Organize your brass by brand and lot. Mixing cases can lead to inconsistent results and potential safety issues​. Save yourself the trouble by only using one type of brass for a given load development.

• Work up loads for each new batch: Whenever you get a new lot of brass (even the same brand), consider re-evaluating your loads. The differences might be minor, but it costs little to be cautious. As one expert noted, even within Winchester brass you can have variations, so stay attentive and don’t assume absolute uniformity​.

• Watch for pressure signs and adjust: Your primers, case heads, and even the sound/report of the shot can tell you if pressure is higher than expected. If something seems off after switching brass, stop and assess. It could be that your “old normal” load is now a bit hot in the new cases.

• Use tools if needed: If you’re an advanced reloader or just curious, measure your case capacities. It can be illuminating to see the numbers. Tools like water measurement or volume gauges are available. Also, if using ballistic prediction software (like QuickLOAD), inputting the exact water capacity of your lot of brass will greatly improve its accuracy in predicting pressure/velocity.

• Err on the side of caution: When in doubt, reduce the load and work up again. No one ever damaged a firearm by starting too low, but plenty of guns (and brass, and worse, shooters’ hands) have been damaged by pressure excursions. Remember the guideline from Sierra’s manual: Thicker cases demand a lighter powder charge. It’s a simple but critical concept for safe reloading.

Conclusion

Case capacity might seem like a nerdy technical detail, but it has very real implications for every reloader. Knowing the exact capacity of your brass – or at least understanding the differences between brands and lots – is crucial for fine-tuning loads and maintaining safety. A difference you can’t even see with the naked eye (a few cubic millimeters of volume) can make the difference between a safe, accurate round and an over-pressure round. By measuring and accounting for case capacity, adjusting your loads accordingly, and following best practices, you ensure that your handloads will be consistent, reliable, and safe. Whether you’re a beginner just learning the ropes or a seasoned benchrest shooter chasing ultimate precision, keep case capacity in mind – it’s one of the “secrets” to reloading success that separates the casual loaders from the truly knowledgeable. Stay safe and happy reloading!
