Load Specifications

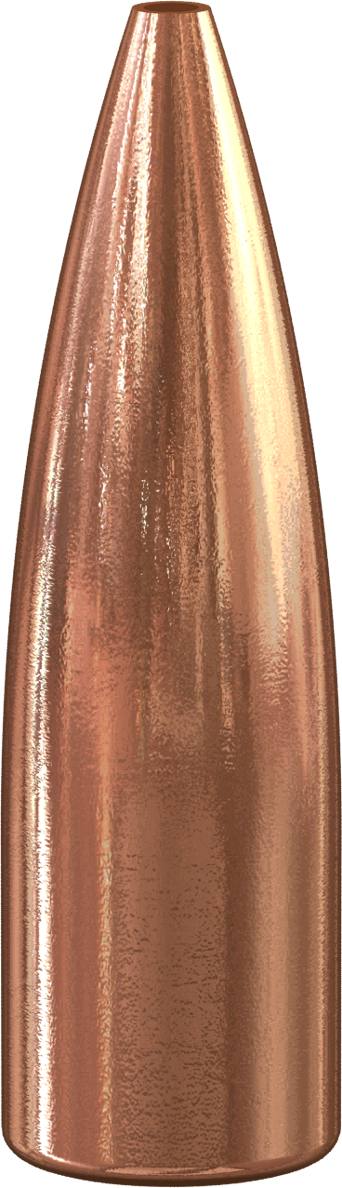

Bullet:.284 | 110gr | Speer TNT
Bullet Manufacturer:Speer
Bullet Weight:110 gr
Bullet Diameter:0.284"
Bullet Length:<<locked>>
Caliber:7 FCP load data
Case Length (l3):2.027"
Cartridge Length (C.O.L.):<<locked>>
Case Capacity:72 Grains of Water
Primer Size:Large Rifle (LR)
Barrel Length:30"
Max. allowed Pressure:64,977 psi
Recommended Twist Rate:1:14.0
Load data in caliber 7 FCP with .284 | 110gr | Speer TNT bullet and 104 powders. The key underlying parameters are shown in the table above.
Important Notice: DO NOT go below Minimum Charge or above Maximum Charge. Since we have no control over the equipment and components used, any responsibility and liability for the results achieved is rejected.
Only powders/loads that match the current filter criteria are displayed: max pressure of a load ≤ 90% of max. standardized pressure, fill rate ≥ 80% and propellant combustion ≥ 95%. Use the sliders above the tables to adjust these thresholds.
Charge: Powder weight in grains. Start with the minimum load and work up carefully.
FR (Fill Rate): Case fill as a percentage. Values above 100% mean compressed loads.
MaxP / %: Maximum chamber pressure in bar and as a percentage of the standardized maximum for this caliber.
V(0): Muzzle velocity in feet per second (fps) at the standardized barrel length.
z (Powder Burn): Estimated propellant combustion percentage at bullet exit.
A valid access license is required to use the Personalized Load Calculator.
You can find more information in our FAQ: How can I use the Personalized Load Calculator?
Max Load - Barrel Length: 30"
| Powder | Charge | FR | MaxP | % | V(0) | z |
|---|---|---|---|---|---|---|
| Accurate 2015 | <<locked>> | 84% | 55,419 psi | 85% | 3323 fps | 100% |
| Accurate 2460 | <<locked>> | 82% | 57,624 psi | 89% | 3409 fps | 100% |
| Accurate 2495 | <<locked>> | 90% | 58,233 psi | 90% | 3406 fps | 100% |
| Accurate 2520 | <<locked>> | 84% | 56,188 psi | 86% | 3425 fps | 100% |
| Accurate 2700 | <<locked>> | 90% | 57,188 psi | 88% | 3402 fps | 97.6% |
| Accurate 3100ᴾ | <<locked>> | 100% | 41,698 psi | 64% | 3212 fps | 96.4% |
| Accurate 4064 | <<locked>> | 92% | 58,001 psi | 89% | 3458 fps | 100% |
| Accurate 4350ᴾ | <<locked>> | 100% | 58,392 psi | 90% | 3560 fps | 99.9% |
| ADI AR 2206H | <<locked>> | 88% | 58,204 psi | 90% | 3504 fps | 100% |
| ADI AR 2208 | <<locked>> | 92% | 55,912 psi | 86% | 3445 fps | 99.9% |
| ADI Benchmark 8208 | <<locked>> | 86% | 57,000 psi | 88% | 3442 fps | 100% |
| Alliant AR-Comp | <<locked>> | 86% | 58,001 psi | 89% | 3409 fps | 100% |
| Alliant Power Pro 2000-MR | <<locked>> | 90% | 58,494 psi | 90% | 3652 fps | 100% |
| Alliant Reloder- TS 15.5 | <<locked>> | 92% | 55,767 psi | 86% | 3465 fps | 100% |
| Alliant Reloder-10x | <<locked>> | 82% | 58,320 psi | 90% | 3386 fps | 100% |
| Alliant Reloder-15 | <<locked>> | 90% | 56,405 psi | 87% | 3494 fps | 100% |
| Alliant Reloder-16ᴾ | <<locked>> | 100% | 55,680 psi | 86% | 3566 fps | 99.9% |
| Alliant Reloder-17 | <<locked>> | 96% | 57,188 psi | 88% | 3609 fps | 100% |
| Alliant Reloder-23ᴾ | <<locked>> | 100% | 39,798 psi | 61% | 3255 fps | 99.1% |
| Alliant Reloder-26ᴾ | <<locked>> | 100% | 45,005 psi | 69% | 3448 fps | 98.7% |
| Baschieri & Pellagri 107 | <<locked>> | 88% | 58,363 psi | 90% | 3520 fps | 99.9% |
| Bofors RP3 | <<locked>> | 92% | 56,623 psi | 87% | 3484 fps | 100% |
| Bofors RP7 | <<locked>> | 96% | 56,637 psi | 87% | 3445 fps | 97.8% |
| Hodgdon Benchmark | <<locked>> | 84% | 55,201 psi | 85% | 3366 fps | 100% |
| Hodgdon BL-C2 | <<locked>> | 86% | 56,739 psi | 87% | 3478 fps | 100% |
| Hodgdon CFE223 | <<locked>> | 82% | 54,897 psi | 84% | 3533 fps | 99.9% |
| Hodgdon H322 | <<locked>> | 82% | 57,711 psi | 89% | 3435 fps | 100% |
| Hodgdon H380 | <<locked>> | 92% | 57,769 psi | 89% | 3504 fps | 99.7% |
| Hodgdon H414 | <<locked>> | 98% | 57,450 psi | 88% | 3560 fps | 98.6% |
| Hodgdon H4350 | <<locked>> | 96% | 57,812 psi | 89% | 3510 fps | 97.4% |
| Hodgdon H4895 | <<locked>> | 88% | 58,784 psi | 90% | 3514 fps | 100% |
| Hodgdon Hybrid 100Vᴾ | <<locked>> | 100% | 51,735 psi | 80% | 3412 fps | 100% |
| Hodgdon LEVERevolution | <<locked>> | 90% | 58,711 psi | 90% | 3553 fps | 100% |
| Hodgdon Superformance | <<locked>> | 98% | 58,755 psi | 90% | 3602 fps | 98.5% |
| Hodgdon TrailBossᴾ | <<locked>> | 100% | 35,418 psi | 55% | 2152 fps | 100% |
| Hodgdon VARGET | <<locked>> | 88% | 56,420 psi | 87% | 3458 fps | 100% |
| IMR 3031 | <<locked>> | 86% | 55,216 psi | 85% | 3438 fps | 100% |
| IMR 4064 | <<locked>> | 90% | 55,216 psi | 85% | 3422 fps | 99.9% |
| IMR 4166 Enduron | <<locked>> | 88% | 55,288 psi | 85% | 3399 fps | 98% |
| IMR 4198 | <<locked>> | 82% | 57,870 psi | 89% | 3333 fps | 100% |
| IMR 4350ᴾ | <<locked>> | 100% | 57,072 psi | 88% | 3471 fps | 97.9% |
| IMR 4451 Enduron | <<locked>> | 96% | 58,552 psi | 90% | 3484 fps | 98.5% |
| IMR 4831ᴾ | <<locked>> | 100% | 54,984 psi | 85% | 3484 fps | 99.8% |
| IMR 4895 | <<locked>> | 90% | 57,870 psi | 89% | 3530 fps | 100% |
| IMR 8208 XBR | <<locked>> | 86% | 57,000 psi | 88% | 3442 fps | 100% |
| Lovex D073.5 | <<locked>> | 82% | 57,595 psi | 89% | 3425 fps | 100% |
| Lovex D073.6 | <<locked>> | 88% | 58,233 psi | 90% | 3468 fps | 100% |
| Lovex S060 | <<locked>> | 88% | 57,624 psi | 89% | 3415 fps | 100% |
| Lovex S062 | <<locked>> | 92% | 58,668 psi | 90% | 3471 fps | 100% |
| Lovex S065 | <<locked>> | 98% | 58,059 psi | 89% | 3474 fps | 99.3% |
| Lovex S070 | <<locked>> | 98% | 55,637 psi | 86% | 3458 fps | 98.4% |
| Norma 201 | <<locked>> | 88% | 56,956 psi | 88% | 3438 fps | 100% |
| Norma 202 | <<locked>> | 88% | 57,508 psi | 89% | 3438 fps | 100% |
| Norma 203B | <<locked>> | 90% | 55,579 psi | 86% | 3478 fps | 100% |
| Norma 204ᴾ | <<locked>> | 100% | 58,030 psi | 89% | 3533 fps | 97% |
| Norma MRPᴾ | <<locked>> | 100% | 44,657 psi | 69% | 3392 fps | 95.9% |
| Norma URPᴾ | <<locked>> | 100% | 57,000 psi | 88% | 3543 fps | 99.8% |
| Ramshot Big Game | <<locked>> | 90% | 56,536 psi | 87% | 3504 fps | 100% |
| Ramshot Hunterᴾ | <<locked>> | 100% | 55,985 psi | 86% | 3537 fps | 99% |
| Ramshot TAC | <<locked>> | 86% | 57,812 psi | 89% | 3468 fps | 99.4% |
| Ramshot Wild Boar | <<locked>> | 86% | 57,290 psi | 88% | 3488 fps | 100% |
| Ramshot X-Terminator | <<locked>> | 84% | 58,218 psi | 90% | 3445 fps | 100% |
| ReloadSwiss RS 14ᴾ | <<locked>> | 100% | 35,839 psi | 55% | 2201 fps | 100% |
| ReloadSwiss RS 40 | <<locked>> | 82% | 56,492 psi | 87% | 3422 fps | 100% |
| ReloadSwiss RS 50 | <<locked>> | 92% | 58,073 psi | 89% | 3478 fps | 98.9% |
| ReloadSwiss RS 52 | <<locked>> | 88% | 57,159 psi | 88% | 3576 fps | 100% |
| ReloadSwiss RS 60 | <<locked>> | 94% | 56,710 psi | 87% | 3606 fps | 100% |
| ReloadSwiss RS 62ᴾ | <<locked>> | 100% | 58,247 psi | 90% | 3586 fps | 99.9% |
| ReloadSwiss RS 70ᴾ | <<locked>> | 100% | 57,798 psi | 89% | 3622 fps | 99.8% |
| Rottweil R 901 | <<locked>> | 86% | 57,783 psi | 89% | 3419 fps | 100% |
| Rottweil R 902 | <<locked>> | 90% | 57,334 psi | 88% | 3432 fps | 100% |
| Rottweil R 903 | <<locked>> | 94% | 56,391 psi | 87% | 3471 fps | 100% |
| Rottweil R 907 | <<locked>> | 96% | 56,637 psi | 87% | 3445 fps | 97.8% |
| Shooters World Long Rifle | <<locked>> | 98% | 58,059 psi | 89% | 3474 fps | 99.3% |
| Shooters World Match Rifle | <<locked>> | 88% | 58,233 psi | 90% | 3468 fps | 100% |
| Shooters World Precision | <<locked>> | 92% | 58,668 psi | 90% | 3471 fps | 100% |
| Shooters World SW4350 | <<locked>> | 98% | 55,637 psi | 86% | 3458 fps | 98.4% |
| SNPE Vectan SP 11 | <<locked>> | 94% | 58,624 psi | 90% | 3547 fps | 100% |
| SNPE Vectan SP 7 | <<locked>> | 86% | 56,304 psi | 87% | 3442 fps | 99.5% |
| SNPE Vectan SP 9 | <<locked>> | 88% | 56,826 psi | 87% | 3468 fps | 100% |
| SNPE Vectan Tubal 3000 | <<locked>> | 88% | 58,247 psi | 90% | 3360 fps | 100% |
| SNPE Vectan Tubal 5000 | <<locked>> | 94% | 58,769 psi | 90% | 3353 fps | 100% |
| SNPE Vectan Tubal 7000 | <<locked>> | 98% | 58,697 psi | 90% | 3419 fps | 98.5% |
| Somchem S321 | <<locked>> | 82% | 54,984 psi | 85% | 3422 fps | 100% |
| Somchem S335 | <<locked>> | 88% | 57,740 psi | 89% | 3356 fps | 100% |
| Somchem S341 | <<locked>> | 86% | 55,593 psi | 86% | 3422 fps | 100% |
| Somchem S355 | <<locked>> | 94% | 56,782 psi | 87% | 3471 fps | 100% |
| Somchem S365ᴾ | <<locked>> | 100% | 51,488 psi | 79% | 3484 fps | 100% |
| Somchem S385ᴾ | <<locked>> | 100% | 47,863 psi | 74% | 3337 fps | 96.2% |
| Vihtavuori N130 | <<locked>> | 84% | 57,841 psi | 89% | 3317 fps | 100% |
| Vihtavuori N133 | <<locked>> | 88% | 58,421 psi | 90% | 3337 fps | 100% |
| Vihtavuori N135 | <<locked>> | 90% | 57,203 psi | 88% | 3389 fps | 100% |
| Vihtavuori N140 | <<locked>> | 90% | 58,160 psi | 90% | 3406 fps | 100% |
| Vihtavuori N150 | <<locked>> | 96% | 58,392 psi | 90% | 3438 fps | 100% |
| Vihtavuori N160 | <<locked>> | 98% | 56,188 psi | 86% | 3478 fps | 99.7% |
| Vihtavuori N530 | <<locked>> | 86% | 57,667 psi | 89% | 3442 fps | 100% |
| Vihtavuori N540 | <<locked>> | 90% | 56,463 psi | 87% | 3406 fps | 100% |
| Vihtavuori N550ᴾ | <<locked>> | 100% | 58,798 psi | 90% | 3543 fps | 99.8% |
| Vihtavuori N555ᴾ | <<locked>> | 100% | 43,787 psi | 67% | 3343 fps | 99% |
| Winchester 6.5 StaBALL | <<locked>> | 98% | 56,811 psi | 87% | 3448 fps | 100% |
| Winchester 748 | <<locked>> | 86% | 57,870 psi | 89% | 3497 fps | 100% |
| Winchester 760 | <<locked>> | 98% | 57,754 psi | 89% | 3563 fps | 98.6% |
| Winchester StaBALL HDᴾ | <<locked>> | 100% | 35,723 psi | 55% | 3258 fps | 99.2% |
| Winchester StaBALL Match | <<locked>> | 88% | 56,768 psi | 87% | 3478 fps | 100% |
Start Load - Barrel Length: 30"
| Powder | Charge | FR | MaxP | % | V(0) | z |
|---|---|---|---|---|---|---|
| Accurate 2015 | <<locked>> | 80% | 48,820 psi | 75% | 3219 fps | 100% |
| Accurate 2460 | <<locked>> | 80% | 53,693 psi | 83% | 3350 fps | 100% |
| Accurate 2495 | <<locked>> | 80% | 41,785 psi | 64% | 3136 fps | 100% |
| Accurate 2520 | <<locked>> | 80% | 48,965 psi | 75% | 3310 fps | 100% |
| Accurate 2700 | <<locked>> | 84% | 46,905 psi | 72% | 3212 fps | 95.5% |
| Accurate 3100 | <<locked>> | 98% | 39,015 psi | 60% | 3150 fps | 95.5% |
| Accurate 4064 | <<locked>> | 80% | 39,494 psi | 61% | 3130 fps | 100% |
| Accurate 4350 | <<locked>> | 84% | 33,112 psi | 51% | 3035 fps | 95.3% |
| ADI AR 2206H | <<locked>> | 80% | 45,208 psi | 70% | 3264 fps | 99.3% |
| ADI AR 2208 | <<locked>> | 80% | 38,421 psi | 59% | 3087 fps | 97.5% |
| ADI Benchmark 8208 | <<locked>> | 80% | 47,253 psi | 73% | 3271 fps | 99.9% |
| Alliant AR-Comp | <<locked>> | 80% | 47,529 psi | 73% | 3251 fps | 100% |
| Alliant Power Pro 2000-MR | <<locked>> | 80% | 41,118 psi | 63% | 3294 fps | 98.2% |
| Alliant Reloder- TS 15.5 | <<locked>> | 80% | 37,942 psi | 58% | 3110 fps | 98.8% |
| Alliant Reloder-10x | <<locked>> | 80% | 54,853 psi | 84% | 3333 fps | 100% |
| Alliant Reloder-15 | <<locked>> | 80% | 40,872 psi | 63% | 3186 fps | 98.3% |
| Alliant Reloder-16 | <<locked>> | 84% | 33,460 psi | 51% | 3051 fps | 95.4% |
| Alliant Reloder-17 | <<locked>> | 80% | 32,953 psi | 51% | 3071 fps | 97.1% |
| Alliant Reloder-23 | <<locked>> | 90% | 29,211 psi | 45% | 2940 fps | 95.3% |
| Alliant Reloder-26 | <<locked>> | 94% | 36,172 psi | 56% | 3219 fps | 96% |
| Baschieri & Pellagri 107 | <<locked>> | 80% | 44,527 psi | 69% | 3264 fps | 98.6% |
| Bofors RP3 | <<locked>> | 80% | 37,681 psi | 58% | 3114 fps | 98.8% |
| Bofors RP7 | <<locked>> | 88% | 44,077 psi | 68% | 3202 fps | 95% |
| Hodgdon Benchmark | <<locked>> | 80% | 48,892 psi | 75% | 3255 fps | 100% |
| Hodgdon BL-C2 | <<locked>> | 80% | 46,224 psi | 71% | 3291 fps | 100% |
| Hodgdon CFE223 | <<locked>> | 80% | 51,126 psi | 79% | 3465 fps | 99.7% |
| Hodgdon H322 | <<locked>> | 80% | 53,954 psi | 83% | 3379 fps | 100% |
| Hodgdon H380 | <<locked>> | 80% | 38,580 psi | 59% | 3117 fps | 96.5% |
| Hodgdon H414 | <<locked>> | 90% | 43,787 psi | 67% | 3294 fps | 95.8% |
| Hodgdon H4350 | <<locked>> | 90% | 47,587 psi | 73% | 3317 fps | 95.2% |
| Hodgdon H4895 | <<locked>> | 80% | 45,614 psi | 70% | 3278 fps | 99.6% |
| Hodgdon Hybrid 100V | <<locked>> | 82% | 28,761 psi | 44% | 2867 fps | 95.3% |
| Hodgdon LEVERevolution | <<locked>> | 80% | 41,713 psi | 64% | 3241 fps | 99.5% |
| Hodgdon Superformance | <<locked>> | 90% | 43,859 psi | 68% | 3310 fps | 95.2% |
| Hodgdon TrailBoss | <<locked>> | 80% | 26,223 psi | 40% | 1926 fps | 100% |
| Hodgdon VARGET | <<locked>> | 80% | 43,700 psi | 67% | 3219 fps | 99.4% |
| IMR 3031 | <<locked>> | 80% | 45,121 psi | 69% | 3268 fps | 100% |
| IMR 4064 | <<locked>> | 80% | 40,321 psi | 62% | 3127 fps | 98.2% |
| IMR 4166 Enduron | <<locked>> | 80% | 42,859 psi | 66% | 3146 fps | 95.2% |
| IMR 4198 | <<locked>> | 80% | 54,737 psi | 84% | 3287 fps | 100% |
| IMR 4350 | <<locked>> | 92% | 44,338 psi | 68% | 3228 fps | 95.2% |
| IMR 4451 Enduron | <<locked>> | 86% | 43,018 psi | 66% | 3182 fps | 95.2% |
| IMR 4831 | <<locked>> | 84% | 32,271 psi | 50% | 2989 fps | 95% |
| IMR 4895 | <<locked>> | 80% | 41,901 psi | 64% | 3222 fps | 98.9% |
| IMR 8208 XBR | <<locked>> | 80% | 47,253 psi | 73% | 3271 fps | 99.9% |
| Lovex D073.5 | <<locked>> | 80% | 53,664 psi | 83% | 3363 fps | 100% |
| Lovex D073.6 | <<locked>> | 80% | 44,324 psi | 68% | 3232 fps | 100% |
| Lovex S060 | <<locked>> | 80% | 45,121 psi | 69% | 3189 fps | 99.3% |
| Lovex S062 | <<locked>> | 80% | 40,248 psi | 62% | 3130 fps | 99.4% |
| Lovex S065 | <<locked>> | 84% | 37,565 psi | 58% | 3058 fps | 95.2% |
| Lovex S070 | <<locked>> | 90% | 43,120 psi | 66% | 3209 fps | 95.7% |
| Norma 201 | <<locked>> | 80% | 44,324 psi | 68% | 3209 fps | 99.8% |
| Norma 202 | <<locked>> | 80% | 44,440 psi | 68% | 3212 fps | 100% |
| Norma 203B | <<locked>> | 80% | 40,263 psi | 62% | 3173 fps | 98.6% |
| Norma 204 | <<locked>> | 96% | 50,705 psi | 78% | 3399 fps | 95.4% |
| Norma MRP | <<locked>> | 98% | 41,771 psi | 64% | 3320 fps | 95% |
| Norma URP | <<locked>> | 84% | 33,678 psi | 52% | 3041 fps | 95.3% |
| Ramshot Big Game | <<locked>> | 80% | 39,798 psi | 61% | 3182 fps | 98.4% |
| Ramshot Hunter | <<locked>> | 90% | 40,147 psi | 62% | 3215 fps | 95.7% |
| Ramshot TAC | <<locked>> | 80% | 47,282 psi | 73% | 3274 fps | 97.9% |
| Ramshot Wild Boar | <<locked>> | 80% | 46,804 psi | 72% | 3301 fps | 99.5% |
| Ramshot X-Terminator | <<locked>> | 80% | 50,937 psi | 78% | 3320 fps | 99.8% |
| ReloadSwiss RS 14 | <<locked>> | 80% | 26,672 psi | 41% | 1975 fps | 100% |
| ReloadSwiss RS 40 | <<locked>> | 80% | 52,968 psi | 82% | 3363 fps | 100% |
| ReloadSwiss RS 50 | <<locked>> | 82% | 41,727 psi | 64% | 3159 fps | 95.7% |
| ReloadSwiss RS 52 | <<locked>> | 80% | 43,163 psi | 66% | 3310 fps | 98.7% |
| ReloadSwiss RS 60 | <<locked>> | 80% | 35,056 psi | 54% | 3150 fps | 99.6% |
| ReloadSwiss RS 62 | <<locked>> | 86% | 35,520 psi | 55% | 3120 fps | 95.9% |
| ReloadSwiss RS 70 | <<locked>> | 88% | 38,116 psi | 59% | 3199 fps | 96% |
| Rottweil R 901 | <<locked>> | 80% | 48,138 psi | 74% | 3255 fps | 100% |
| Rottweil R 902 | <<locked>> | 80% | 41,974 psi | 65% | 3150 fps | 99.6% |
| Rottweil R 903 | <<locked>> | 80% | 35,433 psi | 55% | 3048 fps | 98.1% |
| Rottweil R 907 | <<locked>> | 88% | 44,077 psi | 68% | 3202 fps | 95% |
| Shooters World Long Rifle | <<locked>> | 84% | 37,565 psi | 58% | 3058 fps | 95.2% |
| Shooters World Match Rifle | <<locked>> | 80% | 44,324 psi | 68% | 3232 fps | 100% |
| Shooters World Precision | <<locked>> | 80% | 40,248 psi | 62% | 3130 fps | 99.4% |
| Shooters World SW4350 | <<locked>> | 90% | 43,120 psi | 66% | 3209 fps | 95.7% |
| SNPE Vectan SP 11 | <<locked>> | 80% | 36,579 psi | 56% | 3107 fps | 97.7% |
| SNPE Vectan SP 7 | <<locked>> | 80% | 45,527 psi | 70% | 3241 fps | 98.1% |
| SNPE Vectan SP 9 | <<locked>> | 80% | 43,787 psi | 67% | 3225 fps | 99.1% |
| SNPE Vectan Tubal 3000 | <<locked>> | 80% | 45,513 psi | 70% | 3150 fps | 100% |
| SNPE Vectan Tubal 5000 | <<locked>> | 80% | 37,898 psi | 58% | 2992 fps | 100% |
| SNPE Vectan Tubal 7000 | <<locked>> | 88% | 42,003 psi | 65% | 3107 fps | 95.2% |
| Somchem S321 | <<locked>> | 80% | 51,329 psi | 79% | 3360 fps | 100% |
| Somchem S335 | <<locked>> | 80% | 45,252 psi | 70% | 3150 fps | 100% |
| Somchem S341 | <<locked>> | 80% | 45,339 psi | 70% | 3238 fps | 99.3% |
| Somchem S355 | <<locked>> | 80% | 36,390 psi | 56% | 3058 fps | 98.1% |
| Somchem S365 | <<locked>> | 80% | 26,368 psi | 41% | 2851 fps | 95.7% |
| Somchem S385 | <<locked>> | 98% | 44,744 psi | 69% | 3271 fps | 95.3% |
| Vihtavuori N130 | <<locked>> | 80% | 51,314 psi | 79% | 3219 fps | 100% |
| Vihtavuori N133 | <<locked>> | 80% | 45,832 psi | 71% | 3140 fps | 100% |
| Vihtavuori N135 | <<locked>> | 80% | 41,553 psi | 64% | 3130 fps | 100% |
| Vihtavuori N140 | <<locked>> | 80% | 42,105 psi | 65% | 3133 fps | 100% |
| Vihtavuori N150 | <<locked>> | 80% | 34,505 psi | 53% | 2979 fps | 98.8% |
| Vihtavuori N160 | <<locked>> | 84% | 35,012 psi | 54% | 3041 fps | 95.8% |
| Vihtavuori N530 | <<locked>> | 80% | 47,282 psi | 73% | 3264 fps | 99.9% |
| Vihtavuori N540 | <<locked>> | 80% | 40,741 psi | 63% | 3123 fps | 100% |
| Vihtavuori N550 | <<locked>> | 84% | 34,577 psi | 53% | 3045 fps | 95.4% |
| Vihtavuori N555 | <<locked>> | 90% | 31,299 psi | 48% | 3028 fps | 95.4% |
| Winchester 6.5 StaBALL | <<locked>> | 80% | 30,763 psi | 47% | 2884 fps | 96.4% |
| Winchester 748 | <<locked>> | 80% | 47,210 psi | 73% | 3320 fps | 100% |
| Winchester 760 | <<locked>> | 88% | 41,176 psi | 63% | 3232 fps | 95% |
| Winchester StaBALL HD | <<locked>> | 94% | 29,472 psi | 45% | 3031 fps | 96.2% |
| Winchester StaBALL Match | <<locked>> | 80% | 43,294 psi | 67% | 3228 fps | 99.4% |
ᴾ possible press load - work up slowly to this load while watching for signs of excessive pressure.
This overview compares 122 powders for 7 FCP loaded with the .284 | 110gr | Speer TNT. Alliant Power Pro 2000-MR delivers the highest muzzle velocity at 3,652 fps; across all powders the maximum-charge window runs from 2,152 fps to 3,652 fps. Accurate 3100 gives the best case fill at 100 %, and 122 of the 122 powders fall inside the usable 80–100 % fill window.
Relative to the caliber's maximum pressure (448 MPa), the top charges use 53–90 %, leaving at least 10 % headroom. The 110.0 gr projectile in 0.284" calls for a 1:14.0 twist; slower twists will usually not stabilise this weight. Accurate 3100, Accurate 4350, Accurate High Country reach 100 % fill or more at maximum charge, so these are compressed loads: they need a long drop tube to seat cleanly and react sensitively to the case capacity of your own brass lot. As outliers, Accurate High Country, Alliant Reloder-22, Alliant Reloder-25 burn incompletely and react more sensitively to barrel length and temperature. Always begin at the start load and work up in small increments while checking case and primer for pressure signs.
