Load data for 6.5 x 57 R + .264 | 140gr | Sierra HPBT MatchKing
Recommended Powder(s): Alliant Reloder-23, Alliant Reloder-26, ReloadSwiss RS 70, Vihtavuori N555, Winchester StaBALL HD
Load Specifications
(Use the Personalized Load Calculator below to adjust )

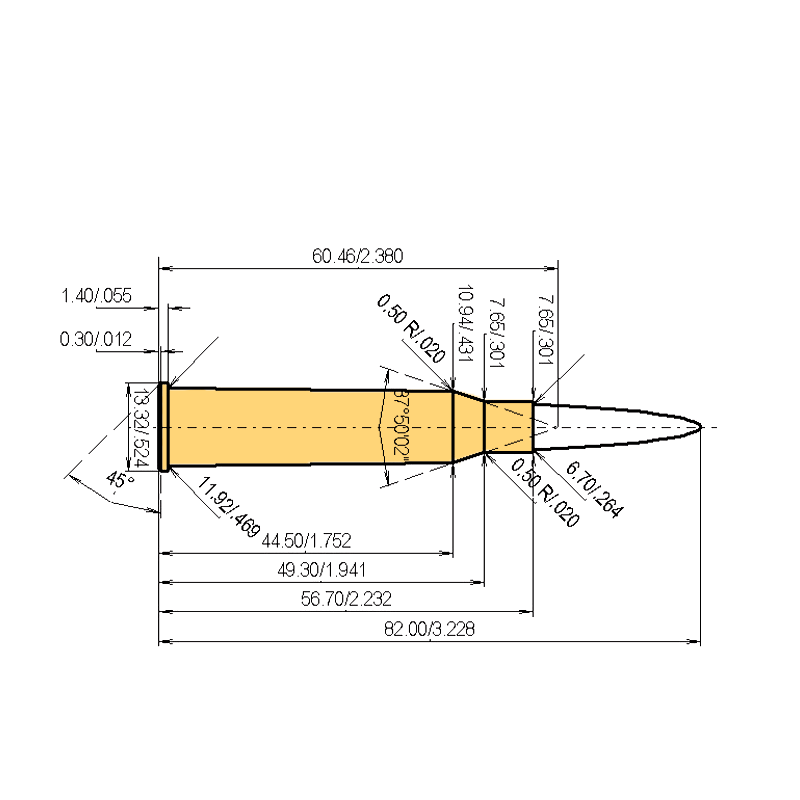

Bullet: | .264 | 140gr | Sierra HPBT MatchKing |
Manufacturer SKU: | 1740 |
Bullet Weight: | 140gr | 9.1g |
Bullet Diameter: | 0.264" | 6.71mm |
Bullet Length: | 1.320" | 33.5mm |
Caliber: | 6.5 x 57 R load data |
Case Length (l3): | 2.232" | 56.7mm |
Cartridge Length (C.O.L.): | 3.067" | 77.9mm |
Seated Depth: | 0.485" | 12.3mm |
Shank Seated Depth: | 0.295" | 7.5mm |
Case Capacity: | 59.0 Grains of Water | 3.83 cm³ |
Primer Size: | Large Rifle (LR) |
Max. allowed Pressure: | 47863 psi | 3300 bar |
LID: | LID_B5813_C1017 |
Last updated: | 2025-01-01 |
Recommended Twist Rate: | 1:9 - 1:8 |
Load data for 84 loads in caliber 6.5 x 57 R with .264 | 140gr | Sierra HPBT MatchKing bullet and 42 powders such as Alliant Reloder-23, Alliant Reloder-26, ReloadSwiss RS 70, Vihtavuori N555, Winchester StaBALL HD. The key underlying parameters are shown in the table above.
Important Notice: DO NOT go below Minimum Charge or above Maximum Charge unless there are reasons. Since xxlreloading.com has no control over the equipment and components used by the customer and the data used in connection with the website, any responsibility and liability for the results achieved is rejected. Also see our Terms of Service.
Questions regarding the load data: Please read the information in the next tab "Explanations".
-
A load must fulfill certain criteria to be listed in the default view below - see "powder criteria to fulfill to be listed".
-
Our load data might deviate from other sources - see the "most common reasons for deviations".
-
All loads are based on the bullet and case dimensions shown under "Load Specifications" - see "reloading suggestions" if you deviate.
-
You can set your specifications in the "Personalized Load Calculator".
-
Go to the bottom of the "Dashboard " page to set the measure system (imperial vs. metric)
-
No data yet
We recommend you limit powder range to relevant brands to speed up re-calculation of results
Use the Personalized Load Calculator to customize loads to your own specific requirements. Find more details in the help section.
Our default view only displays powders/loads that fulfill certain criteria: Max pressure of a load <=90% of Max. Standardized Pressure. Fill Rate (Min FR): >80% and <100% for rife loads, >60% and <100% for pistol loads. Min. Propellant Combustion (Min z): >90% for rifle loads , >80% for pistol/revolver loads. Relax these criteria at your own risk to potentially get more powders shown in the load tables.
.
Click on the desired row in the tables below to add a specific load / powder to your Diary and manage there.
Powder | Charge | FR | MaxP | % | V(0) | z |
|---|---|---|---|---|---|---|
ADI AR 2209 | <<locked>> | 89% | 42583 | 89% | **59 | 95% |
[ADI AR 2213]* | <<locked>> | 93% | 42786 | 89% | **89 | 94% |
Accurate 3100 | <<locked>> | 94% | 42743 | 89% | **46 | 98% |
Accurate 4350 | <<locked>> | 84% | 42250 | 88% | **49 | 99% |
[Accurate MAGPRO]* | <<locked>> | 95% | 43062 | 90% | **28 | 92% |
Alliant Reloder-16 | <<locked>> | 85% | 42221 | 88% | **82 | 100% |
Alliant Reloder-19 | <<locked>> | 90% | 42844 | 90% | **69 | 96% |
Alliant Reloder-22 | <<locked>> | 93% | 42685 | 89% | **08 | 96% |
Alliant Reloder-23 👍 | <<locked>> | 95% | 43004 | 90% | **12 | 100% |
Alliant Reloder-25 | <<locked>> | 97% | 39450 | 82% | **75 | 98% |
Alliant Reloder-26 👍 | <<locked>> | 92% | 42728 | 89% | **87 | 99% |
Hodgdon H4350 | <<locked>> | 86% | 42540 | 89% | **03 | 97% |
[Hodgdon H4831]* | <<locked>> | 95% | 43018 | 90% | **46 | 93% |
[Hodgdon H4831 SC]* | <<locked>> | 92% | 43018 | 90% | **46 | 93% |
Hodgdon Hybrid 100V | <<locked>> | 88% | 43033 | 90% | **36 | 100% |
Hodgdon Superperformance | <<locked>> | 83% | 42351 | 88% | **89 | 97% |
IMR 4350 | <<locked>> | 85% | 42815 | 89% | **13 | 97% |
IMR 4831 | <<locked>> | 89% | 42569 | 89% | **39 | 99% |
[IMR 4955 Enduron]* | <<locked>> | 91% | 42714 | 89% | **07 | 93% |
[IMR 7828 SSC]* | <<locked>> | 92% | 42366 | 89% | **92 | 94% |
Lovex S070 | <<locked>> | 83% | 42467 | 89% | **07 | 98% |
Lovex S071 | <<locked>> | 97% | 40030 | 84% | **93 | 98% |
Norma 204 | <<locked>> | 85% | 42409 | 89% | **39 | 95% |
Norma MRP | <<locked>> | 92% | 43076 | 90% | **51 | 97% |
Norma URP | <<locked>> | 85% | 42902 | 90% | **59 | 99% |
Ramshot Hunter | <<locked>> | 85% | 42598 | 89% | **66 | 98% |
Ramshot Magnum | <<locked>> | 95% | 42757 | 89% | **98 | 96% |
ReloadSwiss RS 62 | <<locked>> | 84% | 42105 | 88% | **69 | 99% |
ReloadSwiss RS 70 👍 | <<locked>> | 85% | 42554 | 89% | **18 | 99% |
ReloadSwiss RS 76 | <<locked>> | 97% | 38058 | 80% | **75 | 96% |
[Rottweil R 904]* | <<locked>> | 88% | 42772 | 89% | **16 | 94% |
Rottweil R 905 | <<locked>> | 90% | 42844 | 90% | **69 | 96% |
[Somchem S361]* | <<locked>> | 88% | 42728 | 89% | **87 | 93% |
Somchem S365 | <<locked>> | 87% | 42554 | 89% | **85 | 100% |
Somchem S385 | <<locked>> | 90% | 42511 | 89% | **39 | 97% |
Vihtavuori N150 | <<locked>> | 84% | 42598 | 89% | **70 | 100% |
Vihtavuori N165 | <<locked>> | 96% | 42685 | 89% | **33 | 96% |
Vihtavuori N555 👍 | <<locked>> | 92% | 42859 | 90% | **98 | 100% |
[Vihtavuori N560]* | <<locked>> | 93% | 42873 | 90% | **28 | 94% |
[Vihtavuori N565]* | <<locked>> | 97% | 40190 | 84% | **72 | 93% |
Winchester 6.5 StaBALL | <<locked>> | 84% | 42598 | 89% | **07 | 100% |
Winchester StaBALL HD 👍 | <<locked>> | 96% | 38261 | 80% | **80 | 100% |
Max Load - Barrel Length: 23.60''
Powder | Charge | FR | MaxP | % | V(0) | z |
|---|---|---|---|---|---|---|
[ADI AR 2209]* | <<locked>> | 81% | 32590 | 68% | **29 | 91% |
[ADI AR 2213]* | <<locked>> | 87% | 34882 | 73% | **11 | 90% |
[Accurate 3100]* | <<locked>> | 81% | 27775 | 58% | **11 | 93% |
Accurate 4350 | <<locked>> | 81% | 37985 | 79% | **67 | 99% |
[Accurate MAGPRO]* | <<locked>> | 92% | 38899 | 81% | **36 | 90% |
Alliant Reloder-16 | <<locked>> | 81% | 37434 | 78% | **84 | 99% |
[Alliant Reloder-19]* | <<locked>> | 81% | 32300 | 67% | **29 | 91% |
[Alliant Reloder-22]* | <<locked>> | 83% | 30705 | 64% | **33 | 90% |
Alliant Reloder-23 | <<locked>> | 81% | 27267 | 57% | **44 | 97% |
[Alliant Reloder-25]* | <<locked>> | 82% | 25048 | 52% | **65 | 90% |
Alliant Reloder-26 | <<locked>> | 81% | 28834 | 60% | **36 | 95% |
Hodgdon H4350 | <<locked>> | 81% | 36216 | 76% | **79 | 95% |
[Hodgdon H4831]* | <<locked>> | 89% | 35723 | 75% | **92 | 90% |
[Hodgdon H4831 SC]* | <<locked>> | 86% | 35723 | 75% | **92 | 90% |
Hodgdon Hybrid 100V | <<locked>> | 81% | 34722 | 73% | **79 | 99% |
Hodgdon Superperformance | <<locked>> | 81% | 39015 | 82% | **20 | 96% |
IMR 4350 | <<locked>> | 81% | 37913 | 79% | **11 | 95% |
IMR 4831 | <<locked>> | 81% | 33127 | 69% | **46 | 97% |
[IMR 4955 Enduron]* | <<locked>> | 85% | 34969 | 73% | **43 | 90% |
[IMR 7828 SSC]* | <<locked>> | 86% | 35259 | 74% | **28 | 90% |
Lovex S070 | <<locked>> | 81% | 39247 | 82% | **44 | 97% |
[Lovex S071]* | <<locked>> | 81% | 23975 | 50% | **96 | 90% |
[Norma 204]* | <<locked>> | 81% | 37376 | 78% | **38 | 94% |
[Norma MRP]* | <<locked>> | 81% | 29225 | 61% | **10 | 91% |
Norma URP | <<locked>> | 81% | 37652 | 79% | **61 | 98% |
Ramshot Hunter | <<locked>> | 81% | 36840 | 77% | **54 | 97% |
[Ramshot Magnum]* | <<locked>> | 85% | 29921 | 63% | **97 | 90% |
ReloadSwiss RS 62 | <<locked>> | 81% | 38014 | 79% | **87 | 98% |
ReloadSwiss RS 70 | <<locked>> | 81% | 36854 | 77% | **93 | 98% |
[ReloadSwiss RS 76]* | <<locked>> | 90% | 29936 | 63% | **43 | 90% |
[Rottweil R 904]* | <<locked>> | 81% | 34026 | 71% | **29 | 91% |
[Rottweil R 905]* | <<locked>> | 81% | 31154 | 65% | **10 | 91% |
[Somchem S361]* | <<locked>> | 82% | 35737 | 75% | **46 | 90% |
Somchem S365 | <<locked>> | 81% | 34360 | 72% | **25 | 100% |
[Somchem S385]* | <<locked>> | 81% | 31894 | 67% | **03 | 93% |
Vihtavuori N150 | <<locked>> | 81% | 39146 | 82% | **08 | 100% |
[Vihtavuori N165]* | <<locked>> | 83% | 28979 | 61% | **21 | 90% |
Vihtavuori N555 | <<locked>> | 81% | 29791 | 62% | **10 | 97% |
[Vihtavuori N560]* | <<locked>> | 88% | 35679 | 75% | **67 | 90% |
[Vihtavuori N565]* | <<locked>> | 92% | 34084 | 71% | **28 | 90% |
Winchester 6.5 StaBALL | <<locked>> | 81% | 38638 | 81% | **34 | 100% |
Winchester StaBALL HD | <<locked>> | 81% | 24105 | 50% | **11 | 95% |
Start Load - Barrel Length: 23.60''
Any powder missing? Then click here.
FR ... fill rate of the cartridge in percent
MaxP ... max. pressure of load in psi or bar
% ... max. pressure of load in percent of the maximum allowed pressure for this caliber
V(0) ... muzzle velocity in feet per second (fps) or meters per second (m/s)
z ... powder burnt in percent
[...] *... not dangerous but load has suboptimal powder burnt with possible characteristics such as extensive muzzle flash or inaccurate loads.
[...] ²... fill rate low - you might want to consider using a filler to ensure proper ignition.
[...] ᴾ... possible press load - work up slowly to this load while watching for signs of excessive pressure.
👍 ... recommended powder/load for this caliber and bullet combination based on its ballistic performance.
<<locked>>... you need to buy an access license to unlock the data
