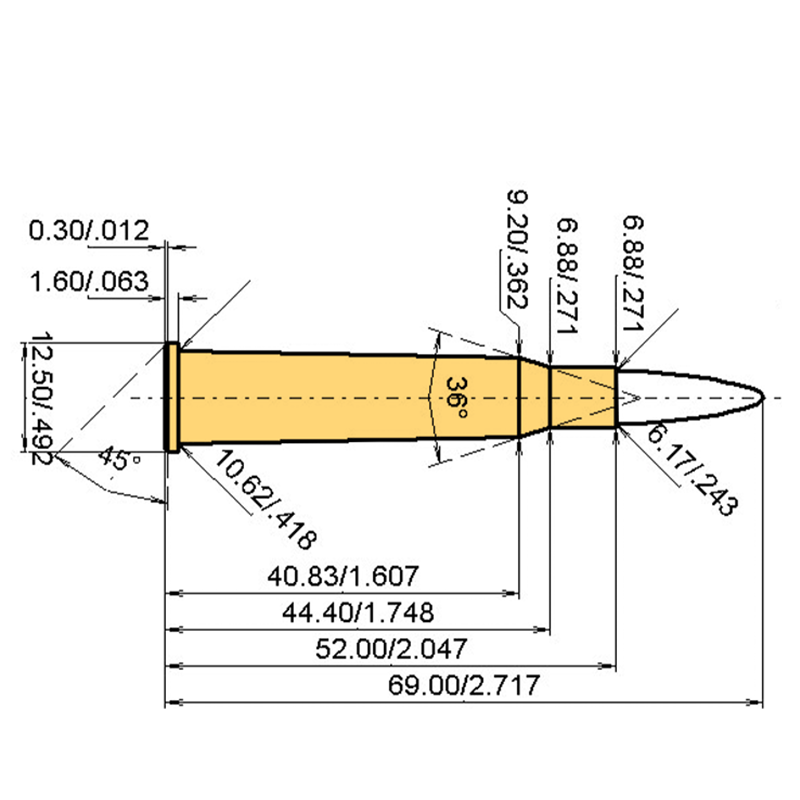

Load Specifications
Bullet: | .243 | 55gr | Nosler Ballistic Tip |
Manufacturer SKU: | 39565 |
Bullet Weight: | 55gr | 3.6g |
Bullet Diameter: | 0.243" | 6.17mm |
Bullet Length: | 0.787" | 20.0mm |
Caliber: | 6 x 52 R Bretschneider |
Case Length (l3): | 2.040" | 51.8mm |
Cartridge Length (C.O.L.): | 2.522" | 64.0mm |
Seated Depth: | 0.305" | 7.8mm |
Shank Seated Depth: | 0.246" | 6.3mm |
Case Capacity: | 36.2 Grains of Water | 2.35 cm³ |
Primer Size: | Large Rifle (LR) |
Max. allowed Pressure: | 47863 psi | 3300 bar |
LID: | LID_B3977_C965 |
>> Use the Personalized Load Calculator further below to adjust input parameters.
Load data for 48 loads in caliber 6 x 52 R Bretschneider with .243 | 55gr | Nosler Ballistic Tip bullet and 24 powder(s). The key underlying parameters are shown in the table above.
Important Notice: DO NOT go below Minimum Charge or above Maximum Charge unless there are reasons. Since xxlreloading.com has no control over the equipment and components used by the customer and the data used in connection with the website, any responsibility and liability for the results achieved is rejected. Also see our Terms of Service.
Questions regarding the load data: Please read the information in the next tab "Explanations".
-
A load must fulfill certain criteria to be listed in the default view below - see here.
-
Our load data might deviate from other sources - see the most common reasons here.
-
All loads are based on the bullet and case dimensions shown under "Load Specifications" - see here what to do if you deviate.
-
You can set your specifications in the "Personalized Load Calculator".
-
Go to the bottom of the "My Account " page to set the measure system (imperial vs. metric)
-
No data yet
.
Use the Personalized Load Calculator to customize loads to your own specific requirements. Find more details in the help section.
Our default view only displays powders/loads that fulfill certain criteria: Max pressure of a load <=90% of Max. Standardized Pressure. Fill Rate (Min FR): >80% and <100% for rife loads, >60% and <100% for pistol loads. Min. Propellant Combustion (Min z): >90% for rifle loads , >80% for pistol/revolver loads. Relax these criteria at your own risk to potentially get more powders shown in the load tables.
Click on the desired row in the tables below to add a specific load / powder to your Diary and manage there.
Powder | Charge | FR | MaxP | % | V(0) | z |
|---|---|---|---|---|---|---|
ADI AR 2207 | <<locked>> | 88% | 41713 | 87% | **32 | 100% |
[ADI AR 2219]* | <<locked>> | 91% | 41785 | 87% | **41 | 94% |
Accurate 2015 | <<locked>> | 97% | 41829 | 87% | **25 | 97% |
[Accurate 2495]* | <<locked>> | 97% | 32822 | 69% | **97 | 94% |
Alliant AR-Comp | <<locked>> | 97% | 36999 | 77% | **86 | 98% |
Alliant Reloder-10x | <<locked>> | 94% | 42206 | 88% | **51 | 98% |
Alliant Reloder-7 | <<locked>> | 86% | 41974 | 88% | **82 | 98% |
Baschieri & Pellagri 106 | <<locked>> | 90% | 42786 | 89% | **30 | 95% |
Hodgdon H322 | <<locked>> | 97% | 42409 | 89% | **58 | 95% |
[Hodgdon H335]* | <<locked>> | 91% | 42163 | 88% | **32 | 93% |
[Hodgdon H4198]* | <<locked>> | 88% | 42221 | 88% | **36 | 94% |
Hodgdon TrailBoss | <<locked>> | 96% | 28906 | 60% | **87 | 100% |
IMR 4198 👍 | <<locked>> | 92% | 42931 | 90% | **22 | 99% |
Norma 200 | <<locked>> | 89% | 41771 | 87% | **32 | 98% |
ReloadSwiss RS 14 | <<locked>> | 95% | 28500 | 60% | **29 | 100% |
[ReloadSwiss RS 40]* | <<locked>> | 95% | 43018 | 90% | **32 | 92% |
[Rottweil R 901]* | <<locked>> | 97% | 39856 | 83% | **56 | 92% |
SNPE Vectan BA6 1/2 | <<locked>> | 85% | 41785 | 87% | **82 | 100% |
[SNPE Vectan SP 10]* | <<locked>> | 91% | 41684 | 87% | **28 | 93% |
[SNPE Vectan Tubal 3000]* | <<locked>> | 96% | 38972 | 81% | **64 | 92% |
[Somchem S335]* | <<locked>> | 97% | 37913 | 79% | **64 | 93% |
Vihtavuori N120 👍 | <<locked>> | 90% | 42177 | 88% | **92 | 100% |
Vihtavuori N130 | <<locked>> | 96% | 43076 | 90% | **02 | 98% |
[Vihtavuori N133]* | <<locked>> | 97% | 35795 | 75% | **22 | 94% |
Max Load - Barrel Length: 23.60''
Powder | Charge | FR | MaxP | % | V(0) | z |
|---|---|---|---|---|---|---|
ADI AR 2207 | <<locked>> | 81% | 33634 | 70% | **38 | 99% |
[ADI AR 2219]* | <<locked>> | 84% | 32996 | 69% | **02 | 90% |
[Accurate 2015]* | <<locked>> | 83% | 26571 | 56% | **02 | 90% |
[Accurate 2495]* | <<locked>> | 92% | 27209 | 57% | **23 | 91% |
[Alliant AR-Comp]* | <<locked>> | 83% | 24076 | 50% | **40 | 90% |
[Alliant Reloder-10x]* | <<locked>> | 81% | 27789 | 58% | **64 | 92% |
Alliant Reloder-7 | <<locked>> | 81% | 35317 | 74% | **28 | 96% |
[Baschieri & Pellagri 106]* | <<locked>> | 81% | 31198 | 65% | **44 | 91% |
[Hodgdon H322]* | <<locked>> | 89% | 32474 | 68% | **92 | 90% |
[Hodgdon H335]* | <<locked>> | 87% | 35969 | 75% | **77 | 90% |
[Hodgdon H4198]* | <<locked>> | 81% | 34519 | 72% | **43 | 91% |
Hodgdon TrailBoss | <<locked>> | 80% | 22713 | 47% | **16 | 100% |
IMR 4198 | <<locked>> | 81% | 30603 | 64% | **94 | 95% |
Norma 200 | <<locked>> | 81% | 31952 | 67% | **76 | 95% |
ReloadSwiss RS 14 | <<locked>> | 80% | 22452 | 47% | **55 | 100% |
[ReloadSwiss RS 40]* | <<locked>> | 92% | 38856 | 81% | **33 | 90% |
[Rottweil R 901]* | <<locked>> | 94% | 36129 | 75% | **64 | 91% |
SNPE Vectan BA6 1/2 | <<locked>> | 81% | 37739 | 79% | **07 | 100% |
[SNPE Vectan SP 10]* | <<locked>> | 86% | 35447 | 74% | **71 | 90% |
[SNPE Vectan Tubal 3000]* | <<locked>> | 93% | 35143 | 73% | **72 | 90% |
[Somchem S335]* | <<locked>> | 92% | 32242 | 67% | **23 | 90% |
Vihtavuori N120 | <<locked>> | 81% | 31850 | 67% | **53 | 99% |
[Vihtavuori N130]* | <<locked>> | 81% | 26818 | 56% | **66 | 91% |
[Vihtavuori N133]* | <<locked>> | 89% | 28355 | 59% | **05 | 90% |
Start Load - Barrel Length: 23.60''
Any powder missing? Then click here.
FR ... fill rate of the cartridge in percent
MaxP ... max. pressure of load in psi or bar
% ... max. pressure of load in percent of the maximum allowed pressure for this caliber
V(0) ... muzzle velocity in feet per second (fps) or meters per second (m/s)
z ... powder burnt in percent
[...] *... not dangerous but load has suboptimal powder burnt with possible characteristics such as extensive muzzle flash or inaccurate loads.
[...] ²... fill rate low - you might want to consider using a filler to ensure proper ignition.
[...] ᴾ... possible press load - work up slowly to this load while watching for signs of excessive pressure.
👍 ... recommended powder/load for this caliber and bullet combination based on its ballistic performance.
