Load data for 5 mm / 35 SMc + .204 | 26gr | Barnes Vmtr

Recommended Powder(s): ADI AR 2207, Alliant Reloder-10x, Alliant Reloder-7, IMR 4198, Norma 200

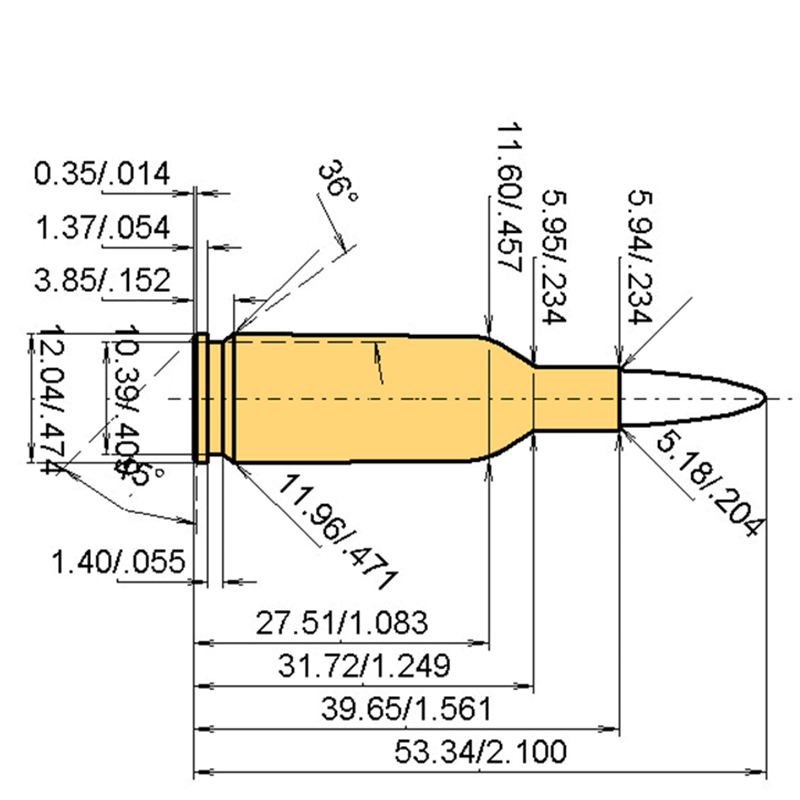

Load Specifications

(Use the Personalized Load Calculator below to adjust )

Bullet:	.204 \| 26gr \| Barnes Vmtr
Manufacturer SKU:	30092
Bullet Weight:	26gr \| 1.7g
Bullet Diameter:	0.204" \| 5.18mm
Bullet Length:	0.639" \| 16.2mm
Caliber:	5 mm / 35 SMc load data
Case Length (l3):	1.555" \| 39.5mm
Cartridge Length (C.O.L.):	2.069" \| 52.5mm
Seated Depth:	0.125" \| 3.2mm
Shank Seated Depth:	0.125" \| 3.2mm
Case Capacity:	37.0 Grains of Water \| 2.40 cm³
Primer Size:	Large Rifle (LR)
Max. allowed Pressure:	63817 psi \| 4400 bar
LID:	LID_B435_C899
Last updated:	2025-01-01

Load data for 102 loads in caliber 5 mm / 35 SMc with .204 | 26gr | Barnes Vmtr bullet and 51 powders such as ADI AR 2207, Alliant Reloder-10x, Alliant Reloder-7, IMR 4198, Norma 200. The key underlying parameters are shown in the table above.

Important Notice: DO NOT go below Minimum Charge or above Maximum Charge unless there are reasons. Since xxlreloading.com has no control over the equipment and components used by the customer and the data used in connection with the website, any responsibility and liability for the results achieved is rejected. Also see our Terms of Service.

Questions regarding the load data: Please read the information in the next tab "Explanations".
A load must fulfill certain criteria to be listed in the default view below - see "powder criteria to fulfill to be listed".

Our load data might deviate from other sources - see the "most common reasons for deviations".

All loads are based on the bullet and case dimensions shown under "Load Specifications" - see "reloading suggestions" if you deviate.

You can set your specifications in the "Personalized Load Calculator".

Go to the bottom of the "My Account " page to set the measure system (imperial vs. metric)
Muzzle velocity vs. barrel length
Every 1 inch additional barrel length increases muzzle velocity by approx. 47.2 fps
C.O.L. (Inch)
C.O.L. (mm)
Case Length (Inch)
Case Length (mm)
CaseCapacity (GoW)
Min z (%)
Min FR (%)
Max FR*
Barrel Length (Inch)
Barrel Length (cm)
Safety Buffer (%)
.
Use the Personalized Load Calculator to customize loads to your own specific requirements. Find more details in the help section.

Our default view only displays powders/loads that fulfill certain criteria: Max pressure of a load <=90% of Max. Standardized Pressure. Fill Rate (Min FR): >80% and <100% for rife loads, >60% and <100% for pistol loads. Min. Propellant Combustion (Min z): >90% for rifle loads , >80% for pistol/revolver loads. Relax these criteria at your own risk to potentially get more powders shown in the load tables.

Click on the desired row in the tables below to add a specific load / powder to your Diary and manage there.

Powder	Charge	FR	MaxP	%	V(0)	z
ADI AR 2207 👍	<<locked>>	90%	55927	88%	**18	100%
ADI AR 2219	<<locked>>	93%	57188	90%	**64	98%
Accurate 2015	<<locked>>	96%	53055	83%	**26	99%
[Accurate 2230]*	<<locked>>	95%	56550	89%	**29	94%
Accurate 2460	<<locked>>	96%	57348	90%	**78	96%
Accurate 2495	<<locked>>	96%	44570	70%	**11	98%
Accurate 2520	<<locked>>	97%	49269	77%	**67	95%
[Accurate 4064]*	<<locked>>	96%	36666	57%	**42	92%
Alliant AR-Comp	<<locked>>	96%	47065	74%	**99	100%
Alliant Reloder-10x 👍	<<locked>>	96%	56594	89%	**41	100%
Alliant Reloder-7 👍	<<locked>>	89%	56942	89%	**95	100%
Baschieri & Pellagri 106	<<locked>>	92%	56362	88%	**73	99%
[Hodgdon BL-C2]*	<<locked>>	96%	49850	78%	**77	93%
Hodgdon Benchmark	<<locked>>	97%	54259	85%	**93	95%
Hodgdon CFE BLK	<<locked>>	89%	56521	89%	**93	95%
Hodgdon H322	<<locked>>	96%	52779	83%	**81	98%
Hodgdon H335	<<locked>>	92%	55985	88%	**01	97%
Hodgdon H4198	<<locked>>	92%	57029	89%	**81	98%
Hodgdon TrailBoss	<<locked>>	95%	29689	47%	**08	100%
IMR 3031	<<locked>>	96%	39653	62%	**99	95%
IMR 4198 👍	<<locked>>	96%	56942	89%	**24	100%
IMR 4227	<<locked>>	86%	57363	90%	**98	100%
[IMR 8208 XBR]*	<<locked>>	97%	50966	80%	**54	93%
Lovex D073.4	<<locked>>	94%	57363	90%	**78	96%
Lovex D073.5	<<locked>>	96%	57348	90%	**78	96%
[Lovex D073.6]*	<<locked>>	96%	44686	70%	**42	94%
Lovex S053	<<locked>>	86%	55927	88%	**29	100%
Norma 200 👍	<<locked>>	91%	56072	88%	**14	100%
Norma 202	<<locked>>	96%	45281	71%	**55	95%
[Ramshot X-Terminator]*	<<locked>>	96%	56086	88%	**16	93%
ReloadSwiss RS 14	<<locked>>	95%	29312	46%	**61	100%
ReloadSwiss RS 36	<<locked>>	86%	57232	90%	**98	100%
ReloadSwiss RS 40	<<locked>>	95%	55854	88%	**78	96%
Rottweil R 901	<<locked>>	97%	50053	78%	**57	96%
SNPE Vectan BA6 1/2	<<locked>>	90%	56043	88%	**29	100%
SNPE Vectan SP 10	<<locked>>	92%	57217	90%	**44	98%
SNPE Vectan Tubal 3000	<<locked>>	97%	49980	78%	**75	96%
[SNPE Vectan Tubal 5000]*	<<locked>>	97%	40016	63%	**25	94%
[Shooters World Match Rifle]*	<<locked>>	96%	44686	70%	**42	94%
[Shooters World Tactical Rifle]*	<<locked>>	93%	56681	89%	**26	94%
Somchem S321	<<locked>>	96%	56260	88%	**85	95%
Somchem S335	<<locked>>	96%	47340	74%	**39	97%
Vihtavuori N120	<<locked>>	93%	57276	90%	**62	100%
Vihtavuori N130	<<locked>>	96%	53113	83%	**83	99%
Vihtavuori N133	<<locked>>	96%	43714	69%	**63	97%
[Vihtavuori N135]*	<<locked>>	97%	33518	53%	**40	93%
[Vihtavuori N140]*	<<locked>>	96%	42598	67%	**50	94%
[Vihtavuori N530]*	<<locked>>	97%	54621	86%	**62	94%
[Vihtavuori N540]*	<<locked>>	97%	43192	68%	**90	94%
Winchester 748	<<locked>>	96%	54708	86%	**98	96%
[Winchester StaBALL Match]*	<<locked>>	94%	55927	88%	**72	94%

Max Load - Barrel Length: 23.60''

Powder	Charge	FR	MaxP	%	V(0)	z
ADI AR 2207	<<locked>>	81%	41684	65%	**06	100%
[ADI AR 2219]*	<<locked>>	81%	37463	59%	**78	93%
[Accurate 2015]*	<<locked>>	81%	31372	49%	**52	93%
[Accurate 2230]*	<<locked>>	89%	44614	70%	**53	90%
[Accurate 2460]*	<<locked>>	85%	38827	61%	**39	90%
[Accurate 2495]*	<<locked>>	84%	28195	44%	**93	90%
[Accurate 2520]*	<<locked>>	89%	36419	57%	**22	90%
[Accurate 4064]*	<<locked>>	93%	33185	52%	**37	90%
[Alliant AR-Comp]*	<<locked>>	81%	27499	43%	**63	93%
Alliant Reloder-10x	<<locked>>	81%	34780	55%	**09	95%
Alliant Reloder-7	<<locked>>	81%	42844	67%	**76	98%
[Baschieri & Pellagri 106]*	<<locked>>	81%	38290	60%	**50	94%
[Hodgdon BL-C2]*	<<locked>>	92%	42351	66%	**73	90%
[Hodgdon Benchmark]*	<<locked>>	87%	40089	63%	**39	90%
[Hodgdon CFE BLK]*	<<locked>>	81%	42989	67%	**75	90%
[Hodgdon H322]*	<<locked>>	82%	32358	51%	**04	90%
[Hodgdon H335]*	<<locked>>	81%	37115	58%	**32	91%
[Hodgdon H4198]*	<<locked>>	81%	40321	63%	**68	94%
Hodgdon TrailBoss	<<locked>>	82%	23844	37%	**15	100%
[IMR 3031]*	<<locked>>	89%	31633	50%	**24	91%
IMR 4198	<<locked>>	81%	36216	57%	**22	97%
IMR 4227	<<locked>>	81%	48762	76%	**17	100%
[IMR 8208 XBR]*	<<locked>>	91%	42322	66%	**37	90%
[Lovex D073.4]*	<<locked>>	85%	39856	62%	**65	91%
[Lovex D073.5]*	<<locked>>	85%	38827	61%	**39	90%
[Lovex D073.6]*	<<locked>>	91%	36419	57%	**22	90%
Lovex S053	<<locked>>	81%	47601	75%	**68	100%
Norma 200	<<locked>>	81%	39508	62%	**30	98%
[Norma 202]*	<<locked>>	88%	35128	55%	**80	91%
[Ramshot X-Terminator]*	<<locked>>	92%	48167	75%	**26	90%
ReloadSwiss RS 14	<<locked>>	81%	23612	37%	**67	100%
ReloadSwiss RS 36	<<locked>>	81%	48950	77%	**40	100%
[ReloadSwiss RS 40]*	<<locked>>	84%	38290	60%	**45	90%
[Rottweil R 901]*	<<locked>>	86%	35418	55%	**53	90%
SNPE Vectan BA6 1/2	<<locked>>	81%	43497	68%	**93	100%
[SNPE Vectan SP 10]*	<<locked>>	81%	37971	59%	**58	92%
[SNPE Vectan Tubal 3000]*	<<locked>>	86%	34983	55%	**84	90%
[SNPE Vectan Tubal 5000]*	<<locked>>	90%	31894	50%	**79	90%
[Shooters World Match Rifle]*	<<locked>>	91%	36419	57%	**22	90%
[Shooters World Tactical Rifle]*	<<locked>>	86%	43787	69%	**24	90%
[Somchem S321]*	<<locked>>	88%	41002	64%	**21	90%
[Somchem S335]*	<<locked>>	85%	32576	51%	**15	91%
Vihtavuori N120	<<locked>>	81%	38711	61%	**71	100%
[Vihtavuori N130]*	<<locked>>	81%	32924	52%	**61	94%
[Vihtavuori N133]*	<<locked>>	83%	28587	45%	**97	90%
[Vihtavuori N135]*	<<locked>>	92%	29356	46%	**79	90%
[Vihtavuori N140]*	<<locked>>	90%	34171	54%	**01	91%
[Vihtavuori N530]*	<<locked>>	89%	42047	66%	**57	90%
[Vihtavuori N540]*	<<locked>>	90%	34693	54%	**40	90%
[Winchester 748]*	<<locked>>	88%	39581	62%	**21	90%
[Winchester StaBALL Match]*	<<locked>>	88%	44556	70%	**06	90%

Start Load - Barrel Length: 23.60''

Any powder missing? Then click here.

FR ... fill rate of the cartridge in percent

MaxP ... max. pressure of load in psi or bar

% ... max. pressure of load in percent of the maximum allowed pressure for this caliber

V(0) ... muzzle velocity in feet per second (fps) or meters per second (m/s)

z ... powder burnt in percent

[...] *... not dangerous but load has suboptimal powder burnt with possible characteristics such as extensive muzzle flash or inaccurate loads.

[...] ²... fill rate low - you might want to consider using a filler to ensure proper ignition.

[...] ᴾ... possible press load - work up slowly to this load while watching for signs of excessive pressure.

👍 ... recommended powder/load for this caliber and bullet combination based on its ballistic performance.
