.260 Ackley Improved Load Data

Alternative names: .260 Remington, 6.5-08 A-Square

Our load data for caliber .260 Ackley Improved covers 229 bullets from 32 manufacturers and a total of 14427 load recipes.

The .260 Ackley Improved (.260 AI) is a modified version of the standard .260 Remington. By blowing the case walls forward and steepening the shoulder to a sharp 40-degree angle, it increases case capacity. This allows handloaders to push 140-grain 6.5mm bullets into the 2,900+ fps velocity window.

Suitable Powders

Bullet Weight (gr) ->
0-50
50-75
75-100
100-150
150-200
200-300
>300

👍 ... suitable powder

👍👍 ... suitable AND popular powder among our reloading community  (clasification might evolve as more community members share their loads )

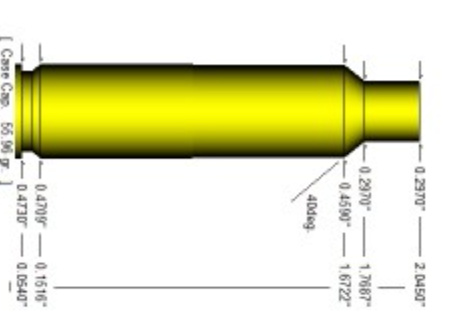

Caliber Specifications

Standard / Datasheet

Primer Size

Large Rifle (LR)

Case Capacity

56 Grains of Water

Bullet / Barrel Diameter

0.264'' | 6.71 mm

Max. Case Length

2.03'' | 51.56 mm

Max. Cartridge Length

2.8'' | 71.12 mm

Max. Standardized Pressure:

62366 psi | 4300 bar

XXL ID

CID_995

.260 Ackley Improved load data is available with the following bullets:

(most popular first)

Filter by Bullet Weight (Grains)

Top Velocity (V0)

.264 | 97gr | IBEX TRD

[3094 fps | 943 m/s]

.260 Ackley Improved + IBEX
.264 | 100gr | Hornady ELD-Match

[3077 fps | 938 m/s]

.260 Ackley Improved + Hornady
.264 | 115gr | Barnes TAC-TX BT

[2867 fps | 874 m/s]

.260 Ackley Improved + Barnes

Weight vs. Velocity - Suitable Bullets for this Caliber

This is illustrative data only - get your access license to unlock all caliber-specific data

not sufficient data yet!

Barrel Length  Variation vs. Velocity - by Bullet Weight

This is illustrative data only - get your access license to unlock all caliber-specific data

not sufficient data yet!

To calculate highly specific load data for caliber .260 Ackley Improved, we recommend using ApexLOAD PRO.
